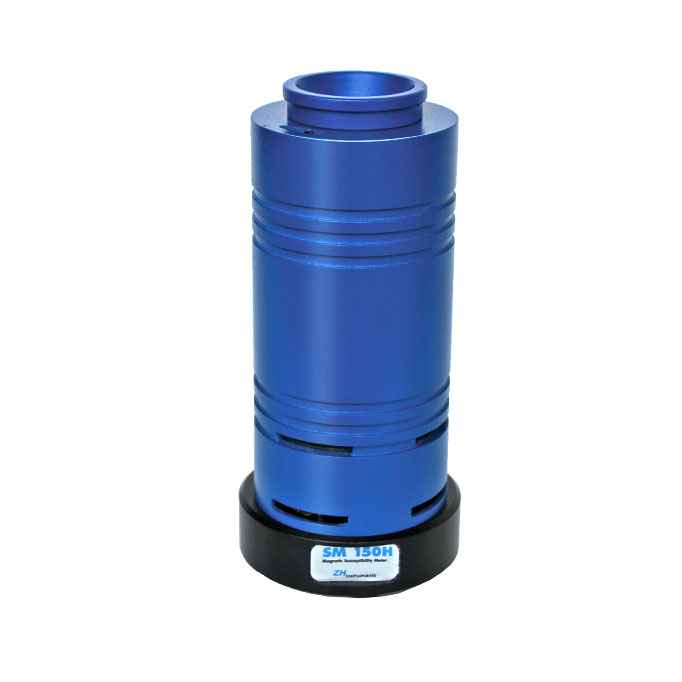

SM 150H

Portable magnetic susceptibility meter

SM150H magnetic susceptibility meter is designed to measure sample with volume up to 25 cm3. It is calibrated for cylinder with diameter 25.4 x 22 mm. Adjusting frequency and field intensity broaden information of measured sample. Thanks to built-in scales we can measure mass susceptibility too.

Operation is straightforward. Sample in the plastic pot is placed into measuring coil for analysis, which is carried out under instruction from personal computer. The SM150H is connected to PC with cable to USB port. The result is available in several seconds and is conventionally stored and displayed on this PC. Flexibility and user friendliness have been the main criteria in the design of the SM150H software.

The instrument is calibrated in the factory on 16 kHz range by means of oil. Then auxiliary standard with 16 g Gd2O3 is measured on all ranges. Value from 16 kHz range is then used for adjusting remaining ranges to display 16 kHz value too. Gd2O3 standard is supplied with the instrument.

FEATURES

ADJUSTABLE FREQUENCY AND FIELD INTENSITY 16 kHz - 512 kHz, 10 A/m - 80 A/m, effective value
HIGH HOMOGENITY OF MAGNETIC FIELD measurement not sensitive on shape of the sample
BUILT-IN SCALE FOR MEASURING SAMPLE WEIGHT Scale is used to initiate measurement
HIGH SENSITIVITY 1xE-6 SI

Picture attached depicts graph measured with SM150L and SM150H instruments.

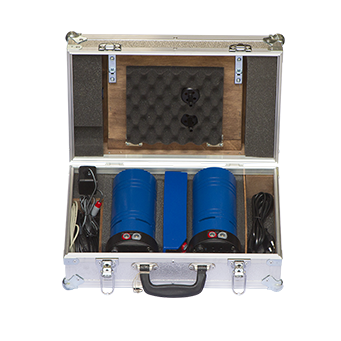

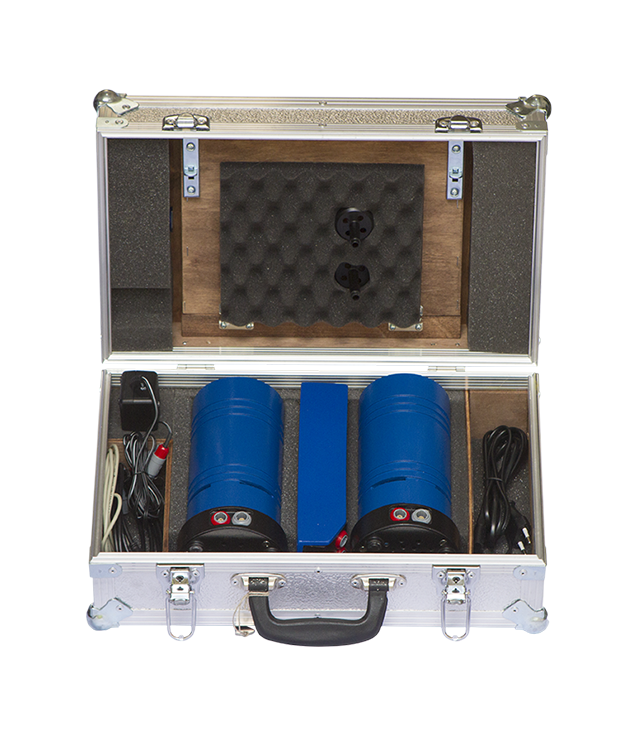

Transport case with SM150L and SM150H.

SPECIFICATION

16 kHz, 32 kHz, 64 kHz, 128 kHz, 256 kHz, 512 kHz

1x10-6 SI Units for sample 11.148 cm3

10 A/m, 20 A/m, 40 A/m, 80 A/m

8 s

38 mm

USB

12 V accu + charger, 4 W

90 mm × 200 mm

Operating frequency

Sensivity

Field intensity

Measurement time

Inner diameter of the pick-up

PC interface

Power

Dimensions

DOWNLOADS

Leaflet

Manual

Programmes

SM-150H.PDF

user's manuals please ask via e-mail
